R series pumps

R Series self-priming marine industrial pumps have been serving the marine industry in fire and bilge pump applications for over 50 years.

This versatile pump has a self-priming capacity of up to 25 ft/7.6 m. Features of the R Series include high temperature ratings up to 225°F/105°C, multiple seal configurations, and close-coupled options.

All R Series pumps are close-coupled with NEMA or IEC motors. Available corrosion-resistant alloys include 316 stainless steel and nickel aluminium bronze. All R Series pumps are ABS (American Bureau of Shipping) type approved and can be delivered in as little as one week.

R Series

Centrifugal Pump Features

High Efficiency

Multiple Alloys – 316 Stainless Steel, Nickel Aluminium Bronze

Machined, Heavy Wall Construction

NPT Connection Parts

Multiple Commercial Seal Options – Ceramic Seat Type 21 Single Mechanical, Standard

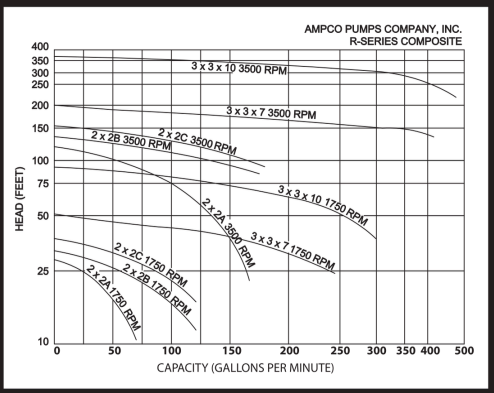

R Series Performance Overview

Models: 5

Maximum Discharge Pressure: 175 PSI / 12 BAR

Maximum Flow Rate: 475 GPM / 108 mᵌ/hour

Maximum Viscosity: 1,200 cP

Seal Features: 6 Seal Options
