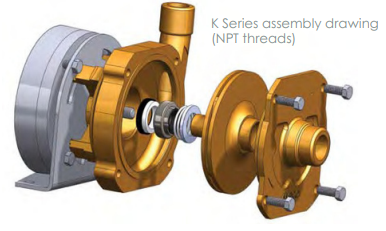

K series pumps

Ampco's K Series offers the same durability as the Z Series in a smaller size. K Series high-efficiency pumps feature NPT threaded connections and are closely matched to NEMA 56J frame motors. Available alloys include 316 stainless steel and nickel aluminium bronze.

The K Series pumps, which are widely used in desalination systems by the United States military, are installed worldwide. All K Series pumps are ABS (American Bureau of Shipping) type approved.

High Efficiency

Multiple Alloys – 316 Stainless Steel, Nickel Aluminium Bronze

Machined, Heavy Wall Construction

Dynamically Balanced Impeller

Multiple Commercial Seal Options Available

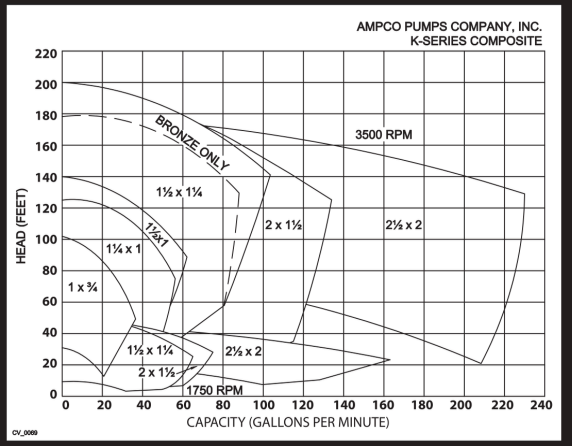

K Series Performance Overview

Models: 12

Maximum Discharge Pressure: 150 PSI / 10 BAR

Maximum Flow Rate: 230 GPM / 52 mᵌ/hour

Maximum Viscosity: 1,200 cP

Seal Features: 6 Seal Options
