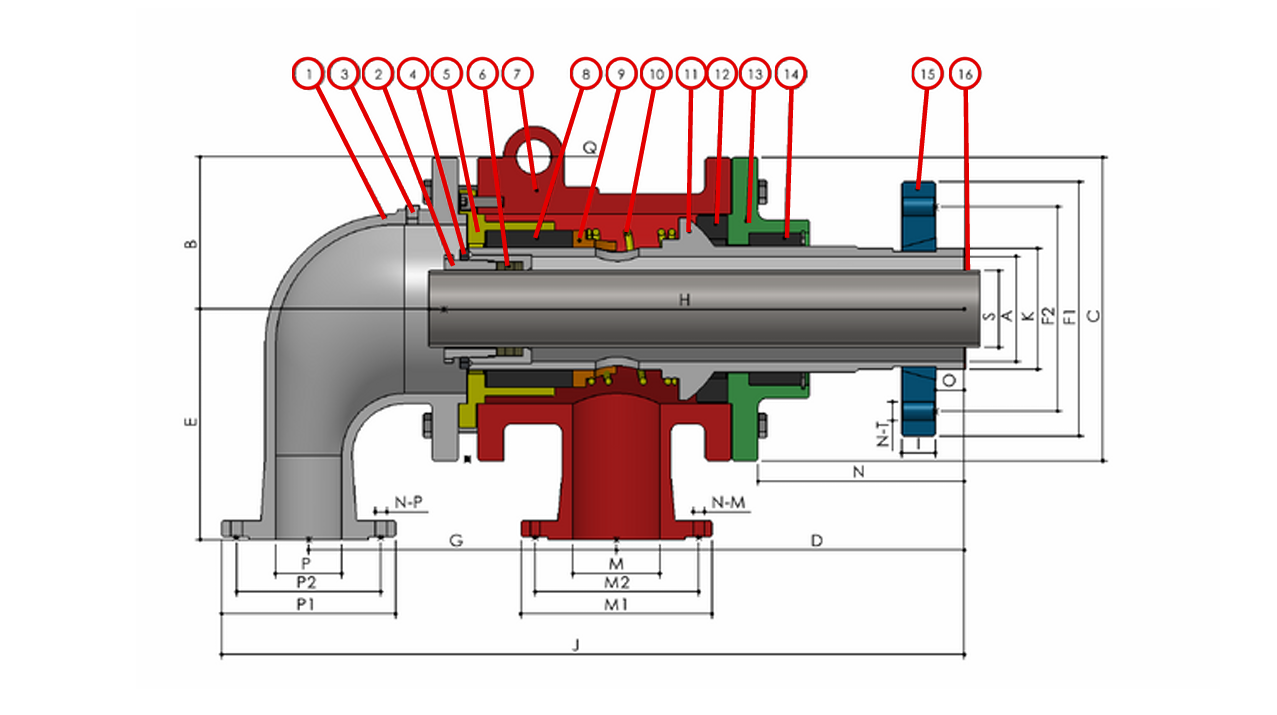

DEDB 300/500 ELSN (DN90 - DN125)

Operating Environment: Steam

Max. Basin 300 psig (20 bar)

Max. Temperature 260°C (500°F)

Max. Speed 200 RPM

Operating Environment: Hot Oil

Max. Basin 150 psig (10 bar)

Max. Temperature 650°F (343°C)

Max. Speed 200 RPM
